Pre-painted aluminum refer to aluminum sheets/rolls whose surface has been pre-painted to form a colored finish. You can easily achieve a visually appealing effect with a simple painting process. And the coating can be done on one or both sides of the plain aluminum.
Advantage
- Superior durability and corrosion resistance ensure long-lasting performance.
- A variety of vibrant colors and finishes enhance the visual appeal of your project.
- Lightweight and easy to handle, it’s easy to install and transport.
- Excellent weather resistance to withstand harsh environmental conditions.
- Low maintenance requirements, saving maintenance time and energy.
- Flexibility enables users to bring their ideas to life and achieve the desired aesthetic.
Classification
Pre-painted aluminum plates have many patterns, which we can divide into: PE/PVDF/ HDPE color coated aluminum sheet/coil/foil, mirror aluminum sheet/coil, wooden/stone grain aluminum sheet/coil, brushed aluminum sheet/coil.

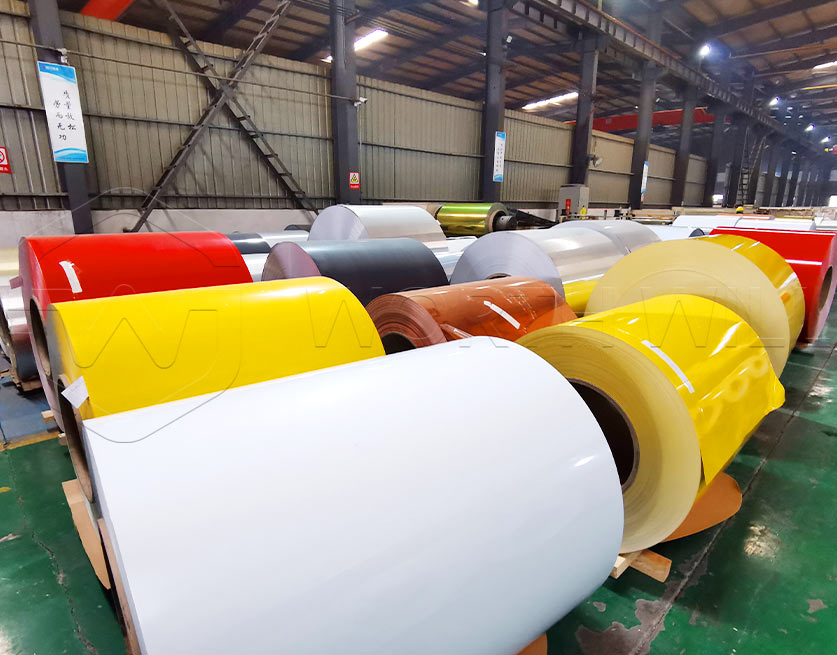

PE/PVDF color coated aluminum sheet/coil/foil
Product | PE/PVDF/ HDPE color coated aluminum sheet/coil/foil |
Alloy | 1xxx/3xxx/5xxx/6xxx |
Thickness | 0.02-5.0mm |
Width | 10-1850mm |
The difference between PE and PVDF
- PEis generally used indoors, guaranteed for 10 years. PVDFis generally used outdoors and are guaranteed for 15-20 years.
- PEis only single and double-coated, PVDFincludes double-coated and three coated
- PEis cheap, PVDFcoating is expensive
- PEis mostly used for coil, PVDFcoating is mostly used for plate
- PEis more common on the market, and the price is cheap
- PE coating gloss is high, and can reach more than 90%
- PE coating can only be single or double-coated, coated too thin shelf life is very short, coated too thick easy to caking
Similarities between PE and PVDF
- They can do solidpaint and metallicpaint.
- They canhave a double coating.
Use
- Ceiling
- Ceiling
- Gutter
- Roofing

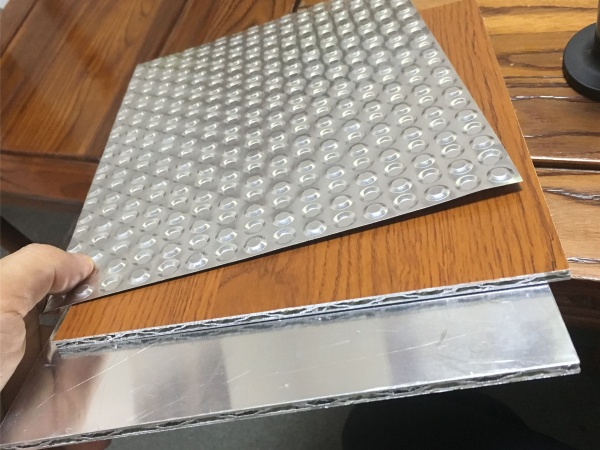

- ACP
- Facades
- License plate material
- Truck body
- Roller Shutter
- UV digital Ink printing
- sublimation sheet/thermal transfer printing

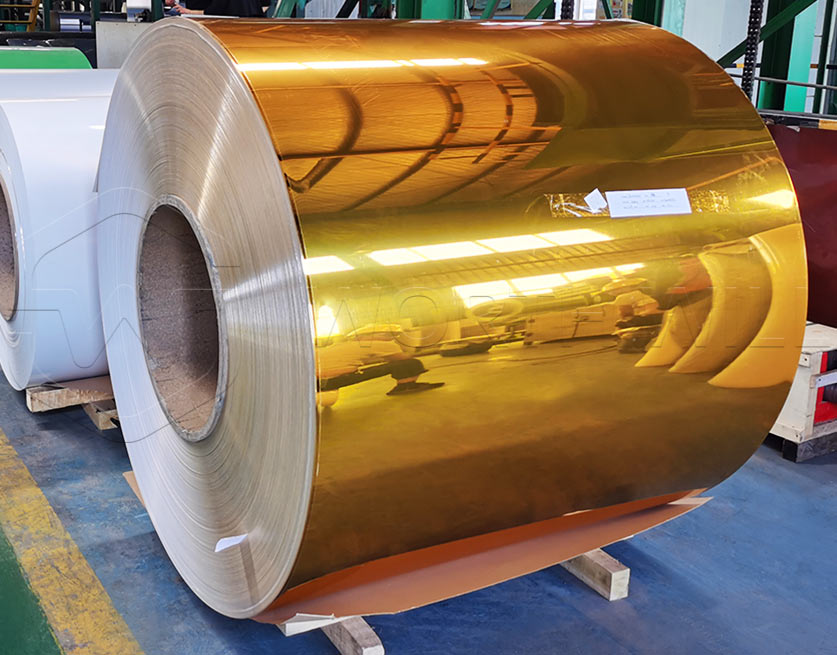

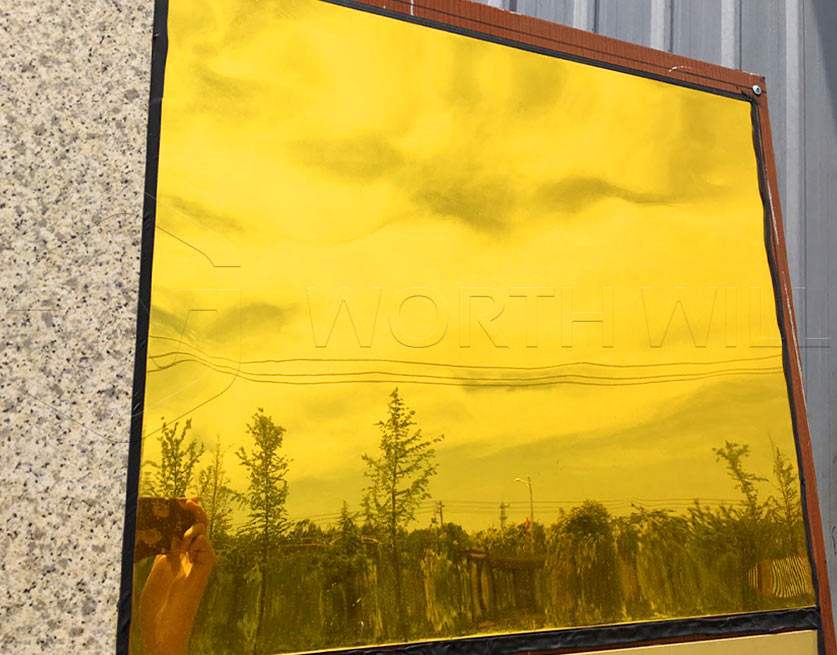

Mirror aluminum sheet/coil
Product | Mirror aluminum sheet/coil |
Alloy | 1xxx/3xxx/5xxx |
Thickness | 0.2-3.0mm |
Width | 30-1600mm |
Common colors | Silver, gold, light gold, tea gold, black |
coating:
- Silver mirrors generally have no coating and have a reflectivity of 85% – 90%.
- Gold, light gold, tea gold, and black coatings are 12-14 microns. There is no need to clean the mirror roll after it is rolled back. The coating can be applied directly. Cleaning will affect the surface. The reflectivity is about 80%.
Lamination:
Commonly used membrane colors are blue and yellow, both of medium and low viscosity.
use:
- Aluminum strip: common color
- Interior decoration: silver mirror
- Ceiling:silver mirror, gold mirror, black mirror

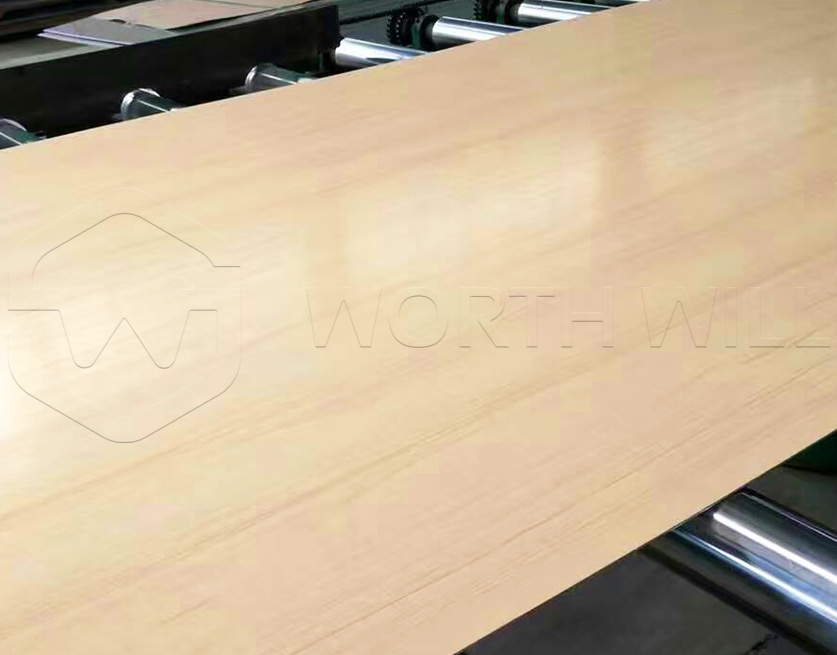

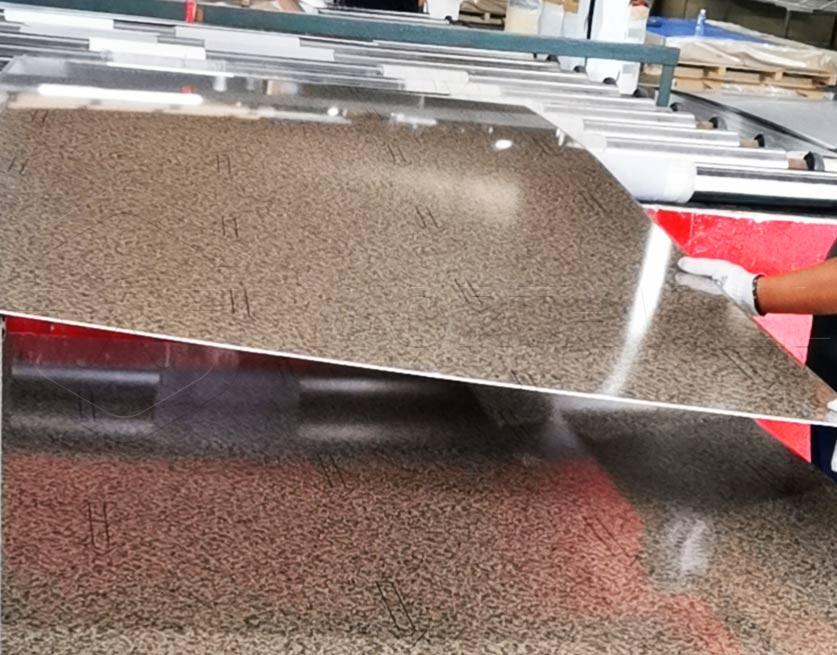

Wooden/stone grain aluminum sheet/coil
Product | wooden/stone grain aluminum sheet/coil |
Alloy | 1xxx/3xxx/5xxx |
Thickness | 0.2-3.0mm |
Width | 30-1600mm |
Wood grain and stone grain mainly depends on customer samples, The coating thickness of imitation stone/wood grain is generally about 35 microns, which consists of primer, color coating and varnish. At the same time, its coating quantity needs to be confirmed based on customer samples.

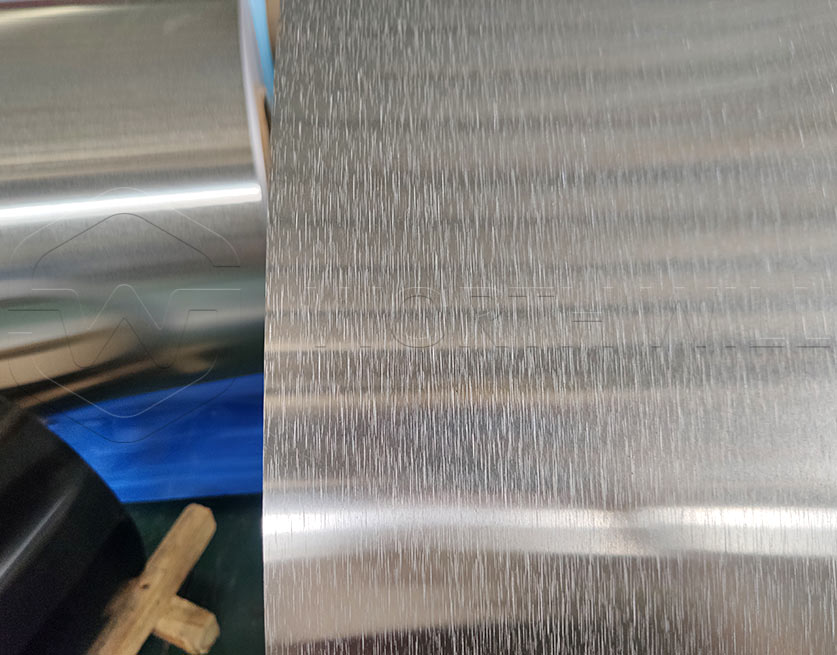

Brushed aluminum sheet/coil
Product | brushed aluminum sheet/coil |
Alloy | 1xxx/3xxx/5xxx |
Thickness | 0.2-3.0mm |
Width | 30-1600mm |
Common colors | Silver, gold, light gold, tea gold |
Brushed:
- The brushingprocess and the embossing process are done on one machine
- For embossing, firstis coating and then embossing. For brushing, first isbrushing and then coating.
Drawing difference
- Real brushed：thickness requires 0.22 – 1.2mm, with obvious brushed feel and thicker lines.
- Fake brushed：no thickness requirements. It is made with a brushed pattern roller. It has no hand feel and fine lines.
use:

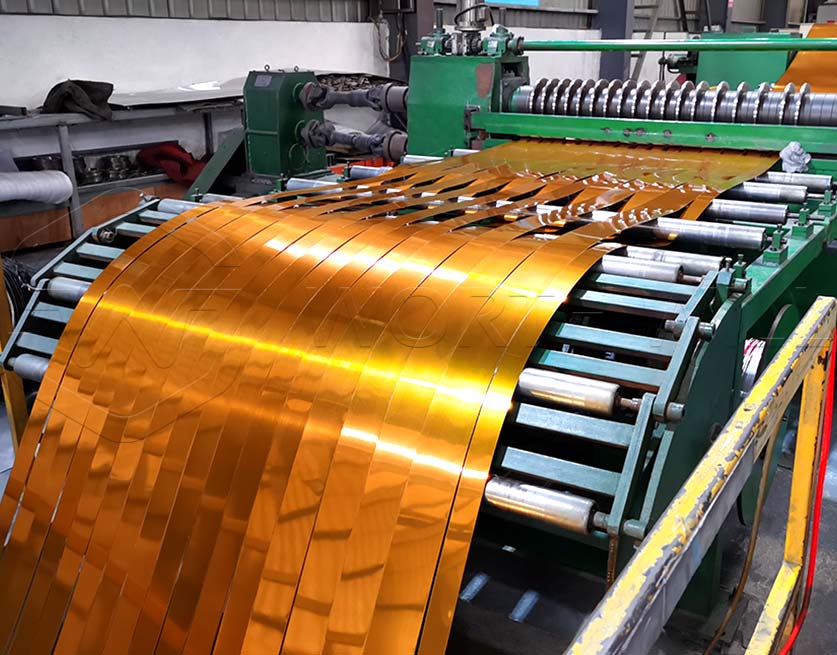

- Aluminum strip
- Mobile phone cases, computer hosts, switches and sockets, etc.
- Aluminum cabinet
- ACP
